Synergy double pulse aluminum welding machine MIG-250SNY

FOB Reference Price:Get Latest Price
$235.00 - $255.00 / Piece | 50 Piece/Pieces (Min. Order)
Model Number:
MIG-250SNY
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 40 Negotiable
Customization:
Customized logo (Min. Order: 100 Pieces)
Customized packaging (Min. Order: 200 Pieces)
Report Suspicious Activity
Overview
Quick Details
Warranty:
1 year
After-sales Service Provided:
Free spare parts, Engineers available to service machinery overseas
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Condition:
New
Wire Feeding Speed:
Adjustable
Material / Metal Processed:
aluminium,Carbon steel,stainless steel
Certification:
CE
Dimensions:
65*30*45.5cm
Usage:
Welding aluminum,carbon steel,stainless steel
Voltage:
230V
Rated Input Voltage:
220V±10%
Wire Melting Type:
Short Circuit Transfer
Max. Load Power Capacity:
5.0KVA
Rated Duty Cycle @40°C (MIG):
60%
Rated Output Current (MIG):
200A
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Home Use, Retail
Weight (KG):
20 KG
Color:
Customized
Product name:
INVERTER DC MIG WELDING MACHINE
Power(W):
5.0KW
Supply Ability
Supply Ability:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Cartons
Port
Ningbo,China
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 40 To be negotiated


Product Description



TECHNICAL DESCRIPTIONS AND FEATURES

1. Adopt full-digital signal processing system.
2. Rich in functions , delivers versatile welding process . embedding welding expert
database , specification match automatically via synergy technology .
3. Suitable to weld a broad range of materials like
Aluminum-magnesium ,Aluminium-silicon , Carbon steel ,stainless steel , alloy steel , etc .
4. Applicable for stainless steel wire , flux cored wire , Aluminum-magnesium
wire ,Aluminium-silicon wire , acid electrode rod , alkaline electrode rod , fiber electrode rod
5. Wide range of output current that suitable to weld different thickness of metal plate .
6. Software programmed welding specification that unaffected by hardware
components , better consistency than analog inverter machines .
7. Higher control precision , low deviation , Time can be accurate to microsecond ,
current can be accurate to 0.1Amp . precise and smooth wire feeding ,

8. The use of decreased hardware components greatly reduced malfunctions , ensures
better stability and reliability .
9. Higher efficiency. The high speed pulse MIG welding increased efficiency by 30 %
against analog welding machine .
10. Able to weld in full angles and directions , dynamic response , deeper welding pool ,
better mechanical welding joint , minimum welding spatter and good-looking appearance of
welding joint . small heat output .stable and smooth arc length during welding.
11. The special 4T function is suitable for welding materials with good thermal
conductivity , excellent welding performance during arc initiating and ending. 12. Intelligent cooling fan, that switches to sleep mode automatically during no-load
condition , and prolong service life of welding machine . energy saving .
13. Intelligent saving of welding specification .
14. Can be connect to robot automatic welding equipment .
15. Usable for remote control welding torch
16. Big display window , simple control panel for easy operation .
17. Strong 4 rolls wire feeding engine . smooth and easy wire feeding .









ITEM/MODEL
MIG-250SNY
Power voltage(V)
230±15%
Frequency(HZ)
50/60
Rated input capacity(KVA)
5.0
No-load voltage(V)
56
Output current range(A)
30-200
Usable wire(mm)
0.6-1.2
Usable electrode(mm)
2.0-4.0
Duty cycle(%)
60
Cool type
FAN
Insulation degree
F
Weight(kg)
20
Dimensions(mm)
680*260*410

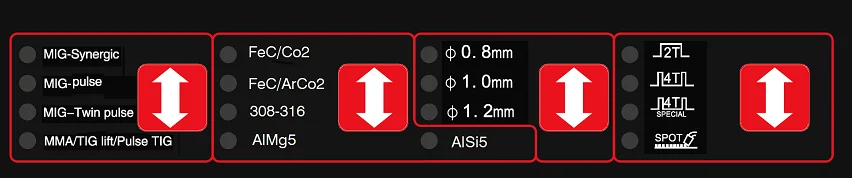

6 welding processes
1. MIG-synergy 2. MIG-monopulse 3. MIG-twinpulse 4. MMA 5. TIG-LIFT 6. TIG-PULSE





Accessories

ACCESSORIES :

1x MIG torch (for aluminum welding)cable 3m

1x electrode holder 200A , cable 1.6m

1x earth clamp  200A , cable 1.6m

1x face mask ,1x brush/hammer

1x 1.0/1.2mm U type  wheel roll

1x 1.0mm contact tip

1x 1.2mm contact tip
