synergic MINI MIG welding machine

FOB Reference Price:Get Latest Price
$55.00 - $70.00 / Piece | 200 Piece/Pieces (Min. Order)
Model Number:
MINI MIG-140
Lead Time:
Quantity(Pieces) 1 - 15000 >15000
Est. Time(days) 45 Negotiable
Customization:
Customized logo (Min. Order: 500 Pieces)
Customized packaging (Min. Order: 500 Pieces)

More

Graphic customization (Min. Order: 500 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Material / Metal Processed:
Carbon Steel
Rated Input Voltage:
220 V
Wire Melting Type:
Short Circuit Transfer
Max. Load Power Capacity:
3.5 kVA
Rated Output Current (MIG):
140 A
Rated Output Voltage (MIG):
56 V
Welding Current/Voltage Range:
20-140A
Rated Duty Cycle @40°C (MIG):
35%
Wire Feeding Speed:
4 m/min
Condition:
New
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Dimensions:
33.5*13.5*25cm
Usage:
home uses for welding
Voltage:
230V, or 110V
Weight (KG):
7 KG
Certification:
CE GS ROHS TUV Emc
Year:
2020
Warranty:
1 year
After-sales Service Provided:
Online support, Video technical support, Engineers available to service machinery overseas
Key Selling Points:
Portable
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works , Energy & Mining
After Warranty Service:
Video technical support, Online support, Spare parts
Local Service Location:
None
Showroom Location:
None
certificate:
CE,GS,
model for selection:
MIG-140
duty cycle:
35%
frequency:
50/60hz
current range:
20-140A
color:
by customer's demand
wire diameter:
0.6mm-1.0mm
wire:
flux cored wire or solid wire
Weight:
7kg
Supply Ability
Supply Ability:
15000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
with cartons
Port
FOB Ningbo,china
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 15000 >15000
Est. Time(days) 45 To be negotiated

INTRODUCTION :

This highly developed digital controlled welder unit adopt advanced chip programmed inverter IGBT technology ,portable design .wire spool takes maximum 1 kg wire . the wire speed and working voltage are automatically matched at optimal status . The incredible welder always ensures excellent performance and high reliability ideal for home use , DIY , work shop , and all the way up for semi-industrial welding purpose .



Versatile mini MIG welding machine :  MIG gas and no gas welding , MMA welding , TIG lift welding .



FEATURES :

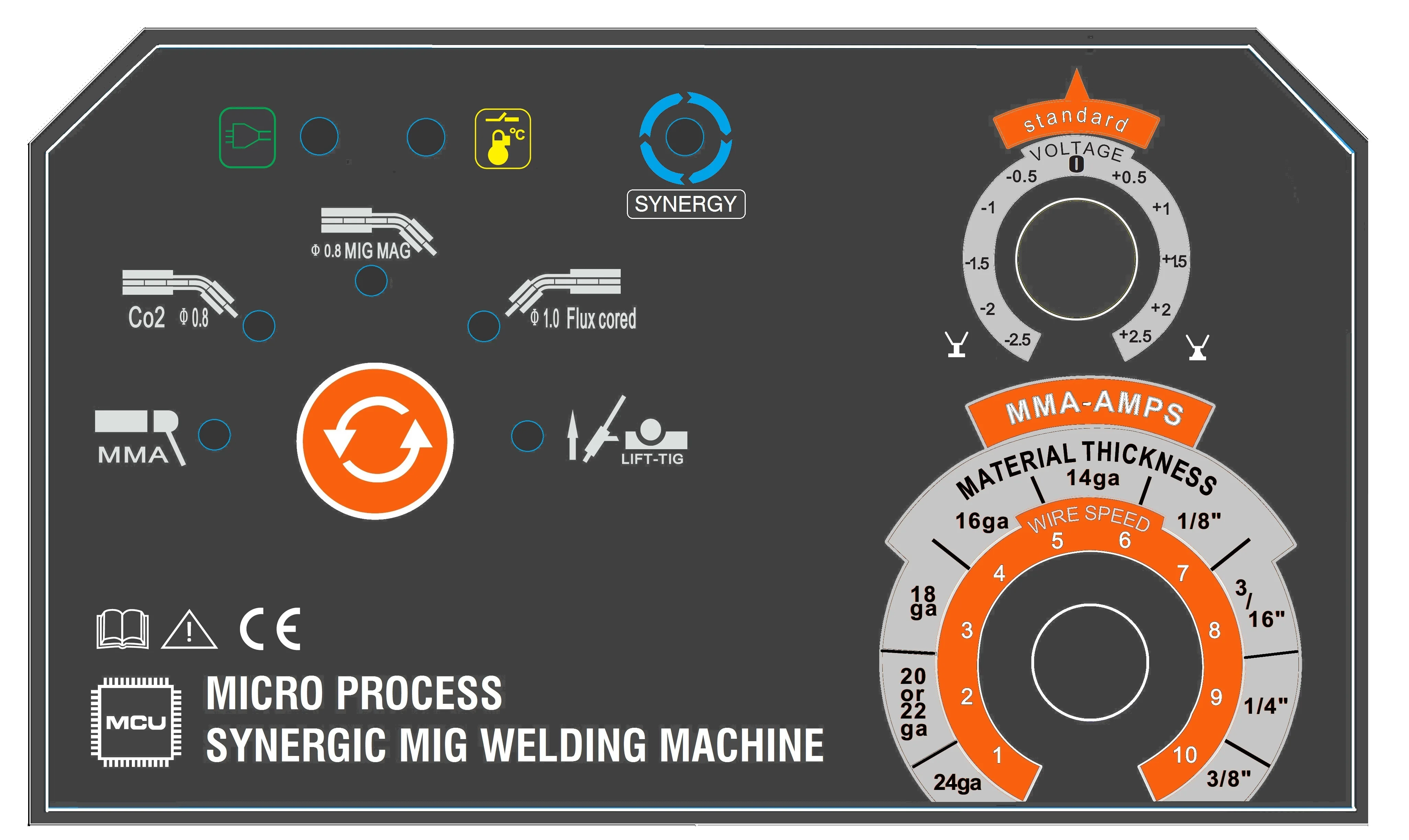

· Inverter IGBT technology . Micro control synergic system

· Precise regulation for welding current and wire speed .

· Thermal protection .

· Delivers versatile welding process  MIG/MAG+MMA +TIG lift

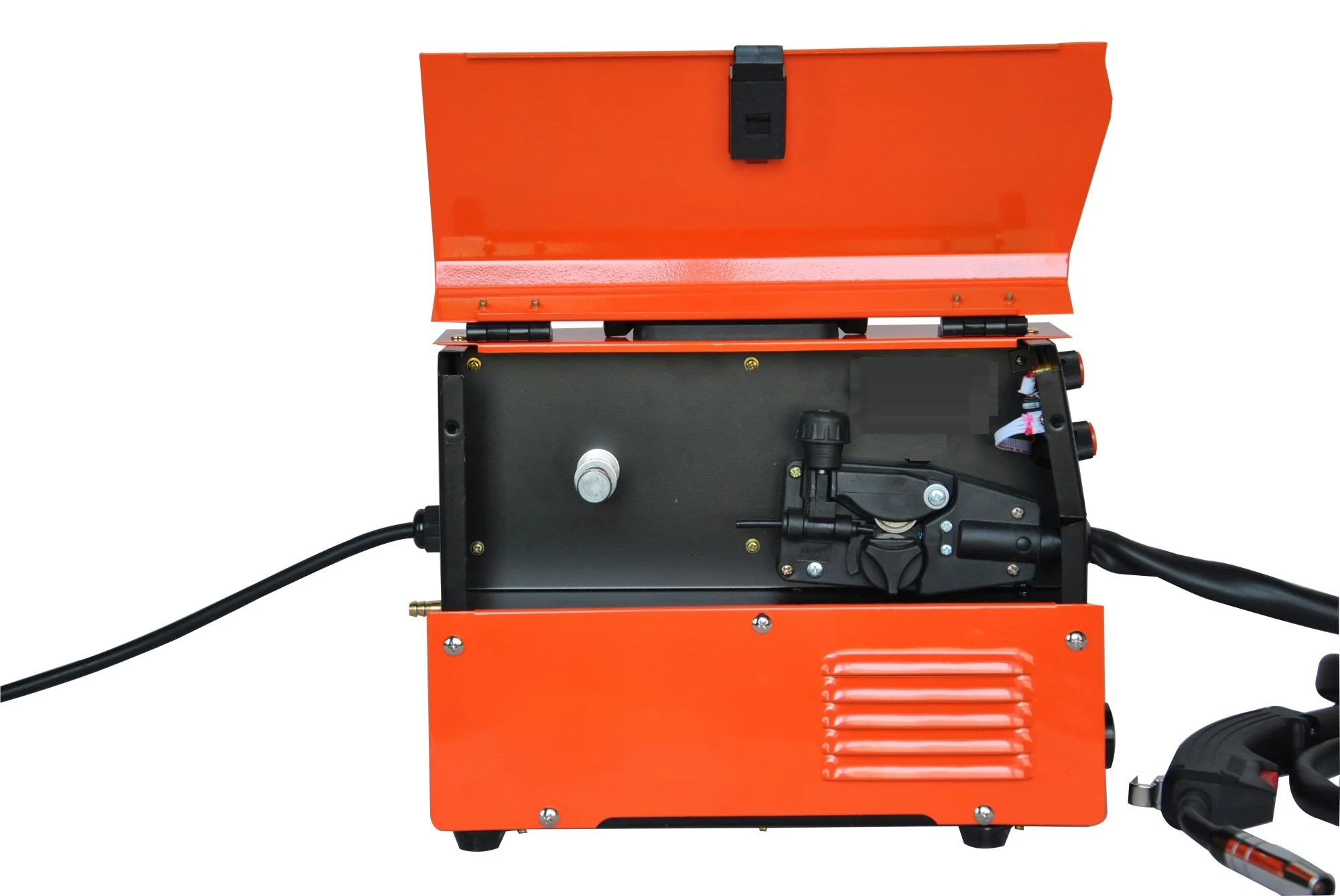

· Wire spool to mount maximum 1 kg wire.



ADVANTAGES :

· Super MINI , portable design , light weight

· Excellent welding performance .

· Easy change for gas /no gas welding .

· High efficiency .

· Little spatter .

· Energy saving .

· Environment friendly.



SPECIFICATIONS :

· Voltage 230V  .

· Input capacity :3.5KVA

· Output current range : 20-140A

· Duty cycle : 60%

· Efficiency : 85 %

· Insulation degree : F

· Protection degree : IP21S

· Usable wire diameter :0.6-1.0mm

· Electrode diameter :1.6-3.2mm

· Weight :  Net wt :7.0kg , Gross wt :  8kg

· Machine size : 33.5x13.5x25cm

· Packing size : 37.5X22 X27 cm


















Company Information

The Zhejiang Poney Electric Co.,Ltd is an export oriented enterprise which specializes in R&D , manufacturing , and sale. We are providing a diverse range of products which include welding machine , plasma cutting machine and battery charger . We believe quality is the key in the international arena ,thus sound management system and strict quality control system have been established to ensure stable performances of the goods . due to enormous investment on digital and automatic equipment , we have tripled our production capability .We pursue excellence by valuing the idea “ be careful in each detail , providing the world with the finest products “.
